Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable

Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable

Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable

Ürün ayrıntıları:

Menşe yeri: Çin
Marka adı: Gieni
Model numarası: S65

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1set
Fiyat: Negotiable
Ambalaj bilgileri: Film + Polywood Kılıfı
Teslim süresi: 60 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: 60 günde 1 takım
Şimdi başvurun
Detaylı ürün tanımı
silindir çapı: 15cm Renk: Simli
Yavaş hız: 26r / dakika Orta Hız: 70R / dakika
Hızlı hız: 145r / dakika Makine Ebadı: 140 * 400 * 450 mm
Ağırlık: 80KG Ambalaj türü: KONTRPLAKLAR HARF

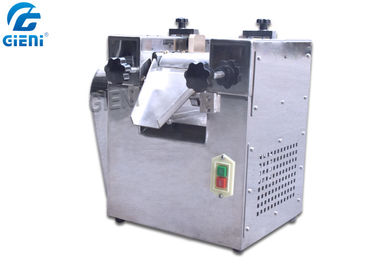

Laboratory Type Lipstick Three Roll Mill Rotate Speed Adjustable






Application for Three Roller Mill



The three roll mill is mainly used to mill various kinds of paste-like materials (except those which can cause corrosion of rolls) such as paint, oil ink, ink, oily pigment, coating, foodstuff, cosmetics etc. Recently it has expanded its application range to raw materials of electric cable, manmade leather, plastic, soap and pencil core etc. therefore the machine has become the main equipment for those factories to mill materials.


Working Principle for Three Roller Mill


When operating, you can adjust gap between the fast roll and the middle roll and that between the slow roll and the middle roll respectively. Start the machine and feed the materials to be milled between two baffles which are between the middle roll and the slow roll. Materials are squeezed by surfaces of the middle and slow rolls and are then driven by the middle roll to the fast roll for further milling. Meanwhile materials are scraped off by the discharging scraper which is closely contacted with the surface of the fast roll, and flow through the discharging bucket with fenders to the collect drum, therefore a milling circulation is formed.

Technical Parameters for Pigment Three Roller Mill



 ModelS65JSG6JSG10JSG16
Roller Diametercm65152640.6
Lengthcm133067.581

Roller speed


Slowr/min26342222
Midr/min70786666
Fastr/min145181198198
Power kw0.757.51115
Out Dimensioncm41*40*45120×100×110256×173.5×151256×203.5×152.5
Weightkg8050020005300

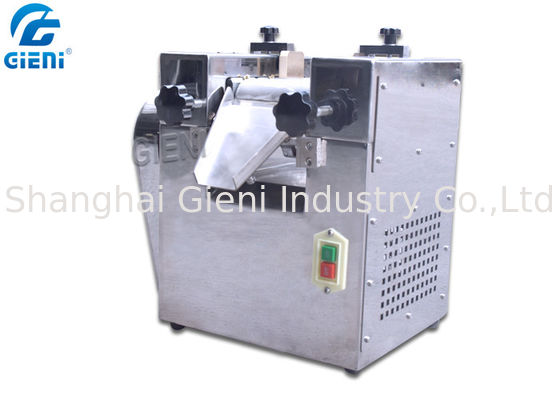

 Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable




Packing and Shipping



◆ Will make sure the machine's package with stretch film wrapping first, and firmly

   sea worthy wooden case;

◆ We can arrange shipping by air or by sea according to require;

◆ We accept to ship by LCL or FCL co-loading.




Our Service



Supply the following after-sale service:



◆ Free training your technican in our workshop;

◆ 1 year wear parts are provided with machine;

◆Able to come on site for commissioning, visa cost, double journey airfare, food

   and accommodation

◆ Local transporation on site for coming engineer will be charge by buyer;

◆ Salary in charge for coming engineer is USD150/day;

◆ Providing Guidanc via email and telephone for whole life of the machine.



Company Information

Shanghai Gieni Industry Co.,Ltd was founded in 2011. We are a cosmetic

machinery manufacturer which professional in researching and developing,

producing cosmetic machinery. We just focus on daily chemical and color cosmetic

fields, and providing the complete set of packaging solutions for your esteemed

company.

After years of effort our products have sold to USA, Mexico, Colombia, Swizerland,

Bulgaria, Russia, Ukraine, Turkey, Indonisier, UAE, Pakistan, Iran and other fifty

countries and refect the machine to be more excellent performance during

production in user’s site.

Since founding of our company, we adhere to the idea of keeping improving,

dedication and enterprising and launch the products with international first-class

standard. We strive to create a individuality brand with bright style:GIENI.
