IoT Ready Rotary CC Cream Filling Machine with OPC UA Integration and Batch Traceability

Büyük resim : IoT Ready Rotary CC Cream Filling Machine with OPC UA Integration and Batch Traceability

Ürün ayrıntıları:

İletişim

IoT Ready Rotary CC Cream Filling Machine with OPC UA Integration and Batch Traceability

Açıklama

Vurgulamak:

rotary type CC cream filling machine

IoT ready cosmetic filling machine

smart air cushion filling machine

Meta Title: Smart Rotary CC Cream Filling Machine | IoT Enabled | Traceability & Remote Support

Meta Description: Industry 4.0 ready Rotary Type Air Cushion CC Cream Filling Machine. Features OPC UA, batch traceability, and remote diagnostics for smart factories.

The Future of Cosmetic Manufacturing is Data-Driven.

Are you still relying on manual logs to track your CC Cream production? In an era of stringent regulations and demanding audits, guesswork is not an option.

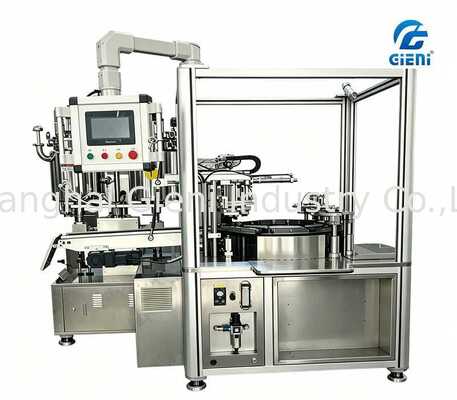

Introducing the JQR-02C Smart Rotary Type Air Cushion CC Cream Filling Machine. We've taken the proven mechanics of high-speed rotary filling and embedded Industrial IoT (IIoT) capabilities. This machine doesn't just fill—it communicates, records, and optimizes.

Smart Features for the Modern Factory

Traditional Machine Limitation	JQR-02C Smart Solution
Blind Spots in Production	✅ Real-Time OEE Dashboard: Monitor Overall Equipment Effectiveness (Availability, Performance, Quality) live.
Audit Trail Headaches	✅ Batch Record Keeping: Automatically logs filling volume, timestamps, and operator IDs for full traceability.
Delayed Troubleshooting	✅ Remote Diagnostics: Allow your technicians or our engineers to diagnose issues via VPN without being on-site.
Recipe Inconsistency	✅ Version-Controlled Recipes: Lock parameters to prevent unauthorized changes and ensure batch-to-batch consistency.

1. Precision in Every Pixel: Advanced Vision & Control

The Rotary Type design ensures mechanical stability, but the Siemens PLC ensures digital precision.

Multi-Color Synchronization: The system monitors the timing of each servo pump independently. If the dual-color boundary shifts by microns, the system auto-corrects.
Predictive Maintenance Alerts: The PLC tracks motor load and cycle counts. It will alert you beforea part fails, preventing unplanned downtime.

2. Seamless Integration with MES/ERP Systems

The JQR-02C speaks your language. With standard communication protocols like OPC UA or Modbus TCP/IP, this machine integrates effortlessly into your Manufacturing Execution System (MES). Push production schedules directly to the machine and pull yield data automatically.

3. Hygienic Design Meets Digital Compliance

Compliance isn't just about clean surfaces; it's about data integrity.

21 CFR Part 11 Compliance Ready: Electronic records and signatures ensure your filling data meets pharmaceutical-grade standards.
CIP/SIP Ready: Programmable cleaning cycles ensure no cross-contamination between flavors or formulas.

Technical Specifications (Smart Edition)

Parameter	Specification	Smart Feature Highlight
Communication Protocol	OPC UA / Modbus TCP/IP	Direct MES/ERP Integration.
Control System	Siemens S7 Series PLC	High-speed data processing & security.
HMI	12" Industrial Touchscreen	Intuitive dashboard with trend charts.
Data Storage	Internal SD Card / USB Export	Unlimited batch history storage.
Machine Type	Rotary Type Air Cushion CC Cream	Stable platform for high-speed data capture.
Output	24 - 30 Cycles/Min	Consistent performance under data surveillance.
Material Contact	SS 316L / PTFE	Validated for cosmetic safety.

Who Needs a Smart Rotary Filler?

Regulated Market Exporters: Selling to the US, EU, or Japan where documentation is as important as the product.
Large-Scale OEM/ODM: Managing dozens of SKUs and needing centralized control over multiple production lines.
Quality-Conscious Brands: Those who cannot afford a single defective batch due to manual error.
